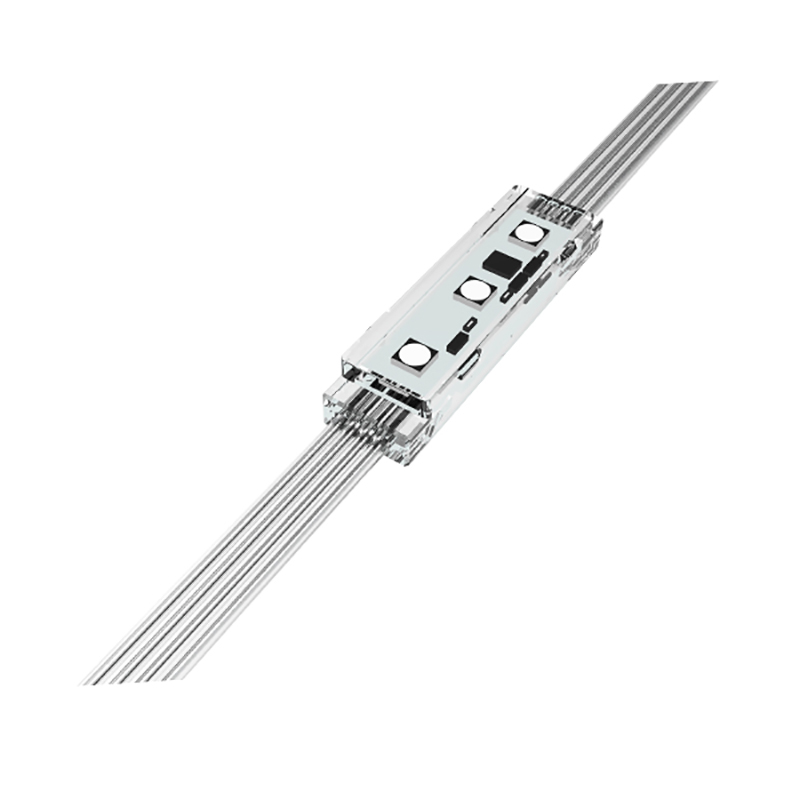

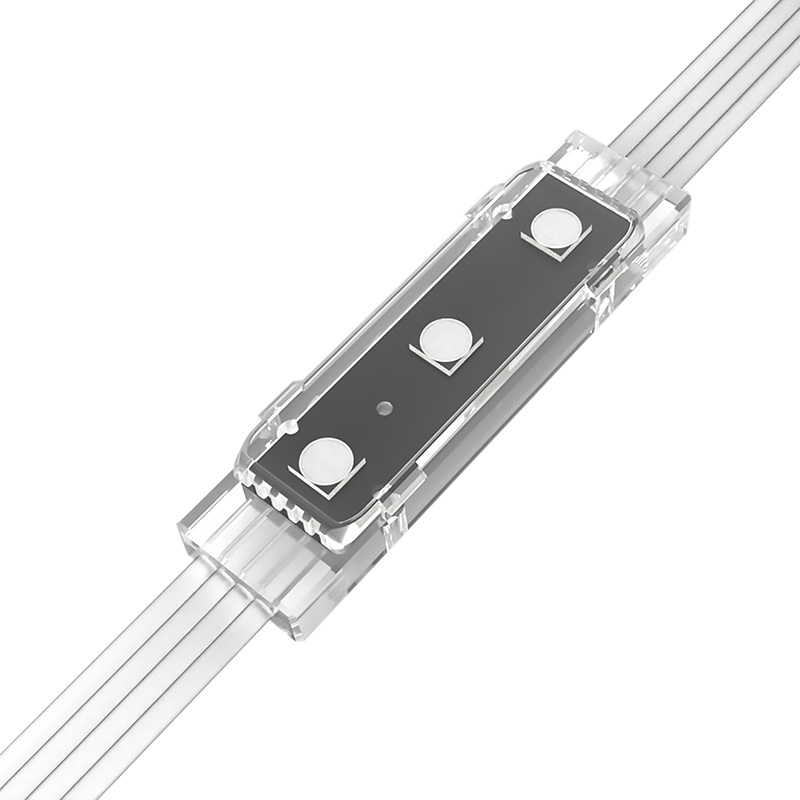

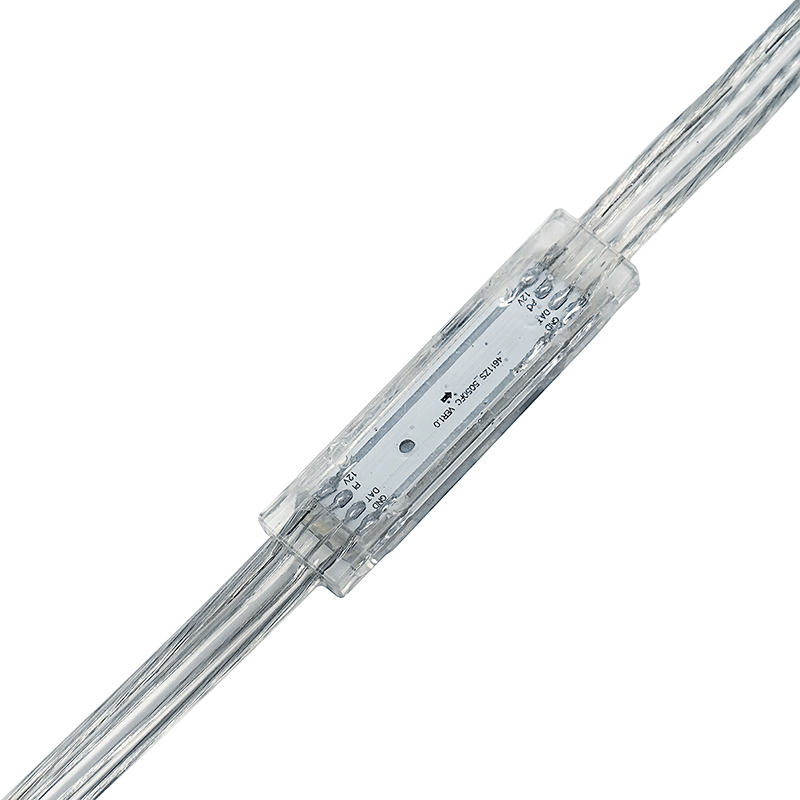

GP-L5915 RGB Linear LED Pixel Light Source is a type of LED lighting module that consists of a linear strip of multiple RGB LED pixel lights in a compact and rigid housing. It is designed to provide high-quality lighting effects in a variety of applications.
| SKU | GPX-L5915RGB |
| Operating voltage | DC12V |
| Power/Bulb | 0.72W |
| SMD Type | SMD5050*3RGB |
| Lamp Qty/string | 100PCS/String |
| Control Mode | 2000-6500K, SPI, DMX512 |
| LED Chip | Epistar, Cree, Osram….. |
| Luminous flux | 25.21LM |
| Material | PVC+PC |

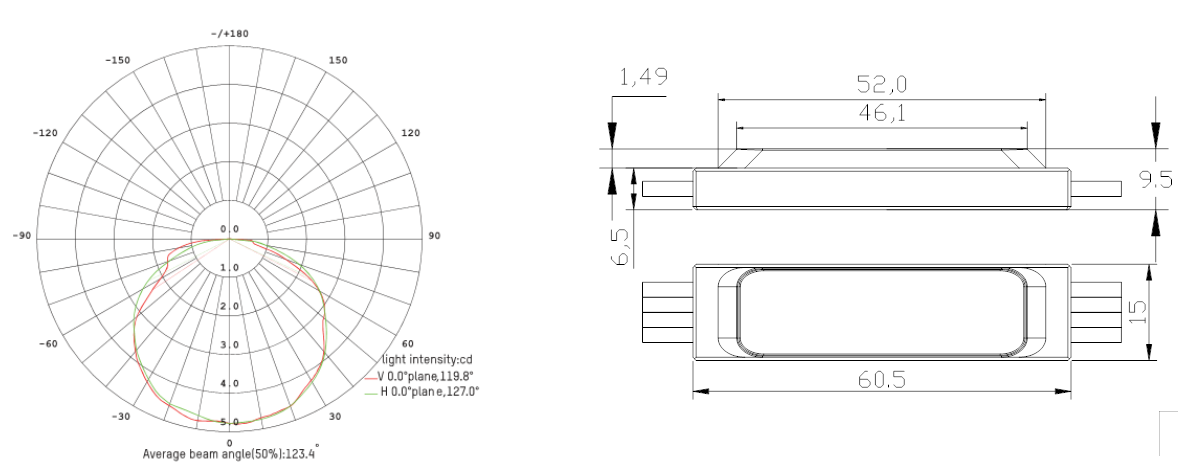

| Diameter | 60.5mm*15mm*9.5mm |
| Beam angle | 120° |
| IP Rate | IP66 |
| Cable Type | 2×0.75mm²+2×0.35mm² |
| Operating Temp | -45℃ to 55℃ |
1. led Linear point lights With the application of Double Protection encapsulation technology, it reaches Protect Grade IP66 and Fireproof Grade V-0. it can be self-extinguish after being deviated from fire. It can be controlled by an offline machine (with an SD card) to show RGB color, or with a computer to perform the online real-timely transfer of images, text, video, and other signals.5. The product is a larger LED point light source with high brightness; it is suitable for the landscape of large buildings Lighting and outlines of large bridges.
2. Using the special strip design, traditional modules and light strips can be used outdoors without compromising durability.
The RGB Linear LED Pixel Light Source can produce a wide range of colors, including red, green, and blue, as well as a range of other colors by mixing these primary colors. It can be controlled using a DMX512 protocol, allowing for precise control over the color, brightness, and intensity of each individual LED pixel.
The device is designed for easy installation and can be mounted using a variety of mounting brackets and accessories. It is also weather-resistant, making it suitable for use in outdoor applications.
The RGB Linear LED Pixel Light Source is commonly used in a range of lighting applications, including architectural lighting, stage lighting, and event lighting. It can be used to create dynamic color washes, highlight architectural features, and add visual interest to stage performances and events.
Overall, the RGB Linear LED Pixel Light Source is a powerful and versatile lighting module that is ideal for use in a wide range of applications where high-quality lighting effects are required, especially for linear light installations.
