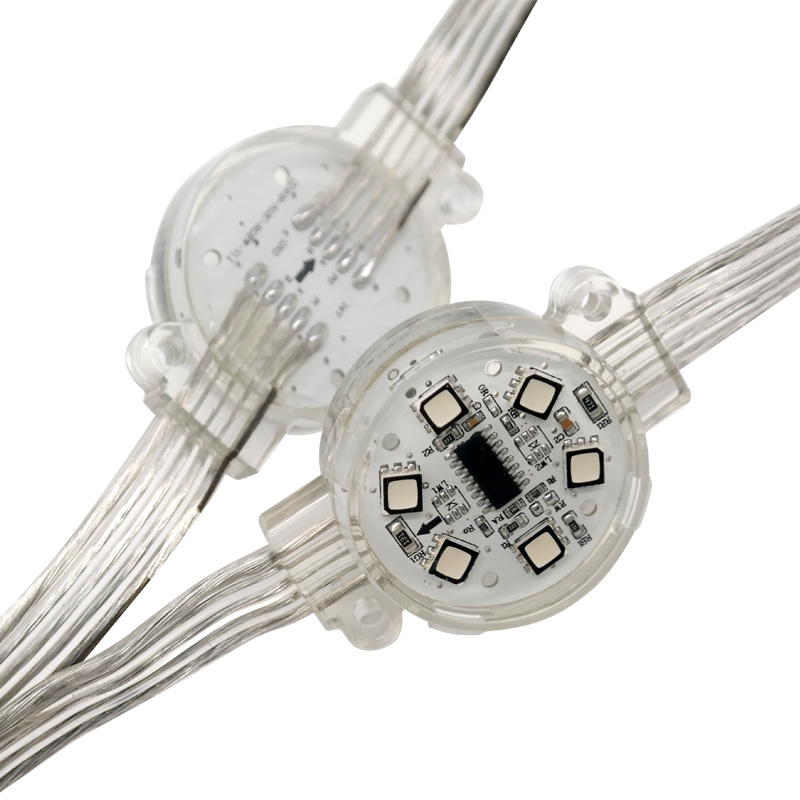

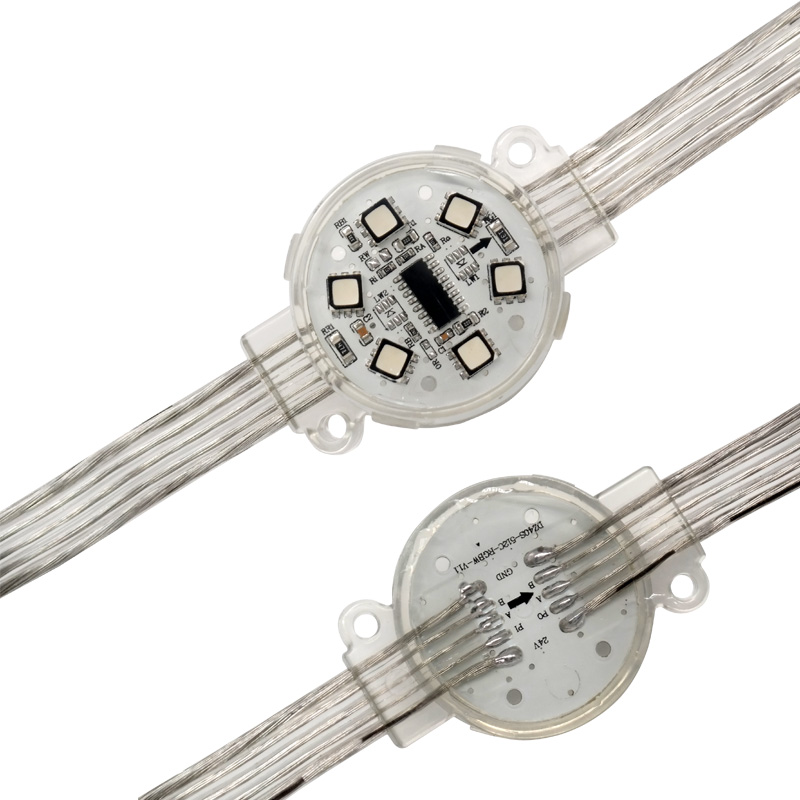

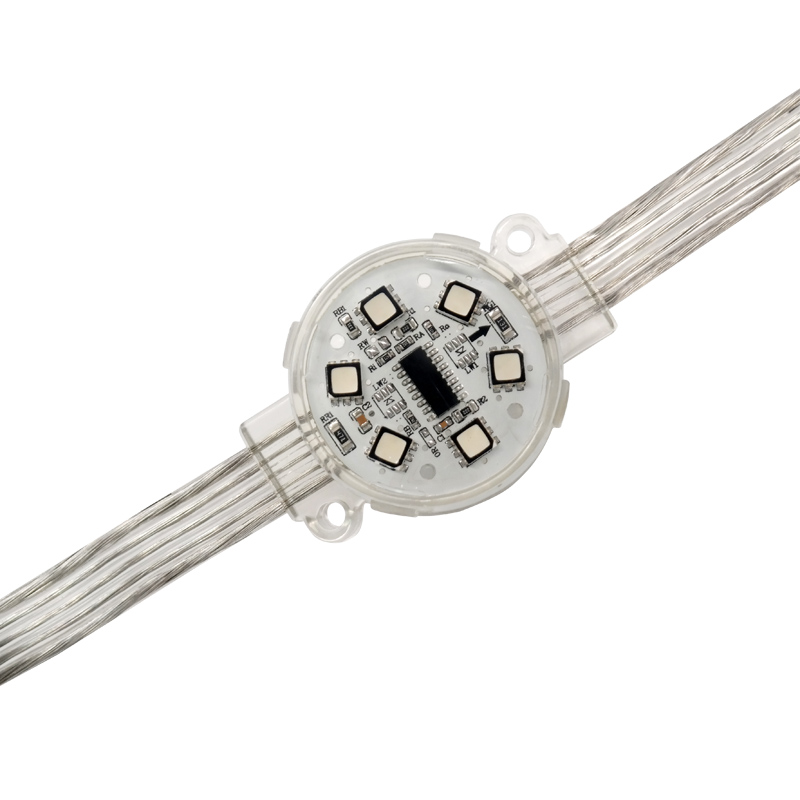

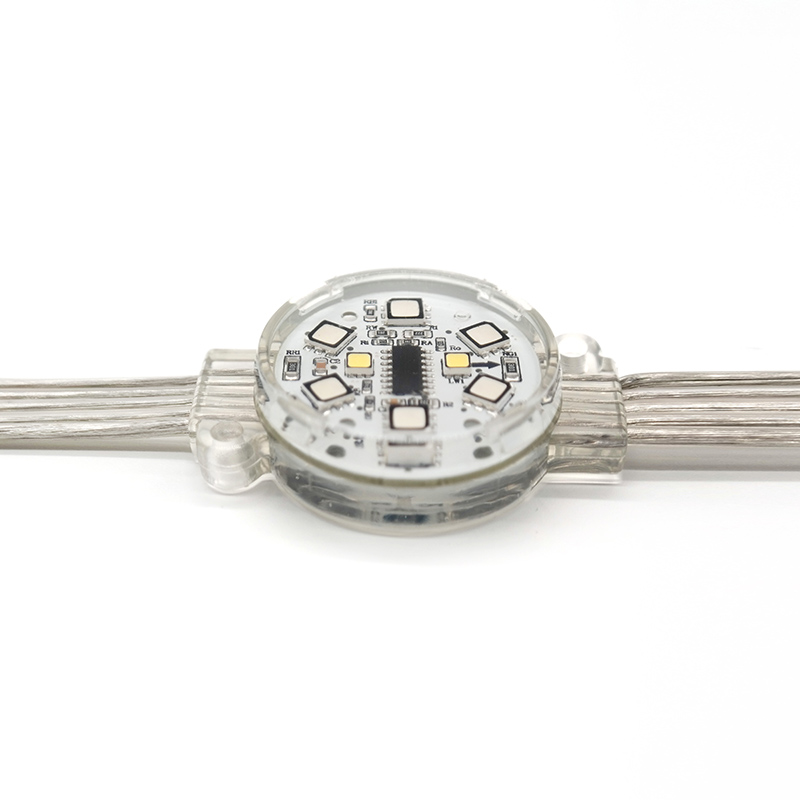

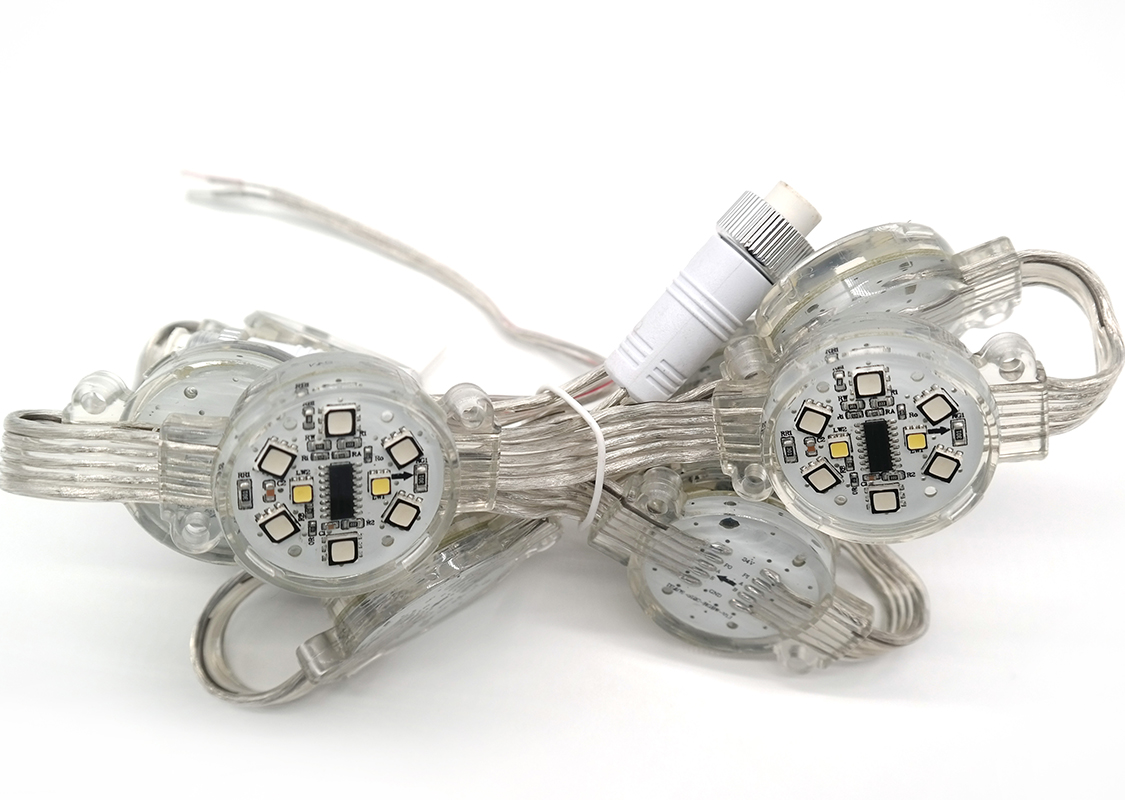

GP-40 DMX512 LED Pixel Light Source is a type of lighting controller that is used to control LED pixel lights. It is a compact and versatile device that can be used to control up to 40 channels of LED pixel lights through DMX512 protocol.
SKU | GPX-40RGB | GPX-40RGBW |
Operating voltage | DC24V |
Power/Bulb | 1.44W | 1.92W |
SMD Type | SMD5050*6RGB |SMD5050*6RGB+2W |
Lamp Qty/string | 100PCS/String |
Control Mode | 2000-6500K, SPI, DMX512 |
LED Chip | Epistar, Cree, Osram….. |
Material | PVC+PC |
Diameter | Φ40mm*14mm |
Beam angle | 120° |
IP Rate | IP67 |
Cable Type | 2x1mm²+3×0.35mm² |
Operating Temp | -30℃ to 55℃ |
1. Led Facade light is Durable, energy saving, waterproof and sunscreen, antifreeze, highlight, etc.;
2. 120-degree wide-angle lens design, larger viewing angle;
3. Super concealed installation, no lamp beads, and lamp structure are visible during the day;
4. GP-DZ40 DMX512 LED Pixel Lights Source is applicable to a wide range of scenes, super textured lighting effects;
5. RGB, DMX 512 RGBW, 2000K-6500K Artnet Control, satisfying all designers’ pursuit of light;
The GP-40 DMX512 LED Pixel Light Source can be used to create a wide range of lighting effects, including color fades, chases, and patterns. It allows for precise control over the color, brightness, and intensity of each individual LED pixel, allowing users to create complex and dynamic lighting displays.
The device features a simple and user-friendly interface, with an LCD screen and push-button controls for easy operation. It can be configured to work in standalone mode, where it will run pre-programmed lighting sequences without the need for an external controller, or it can be connected to a DMX controller for more advanced programming options.
Overall, the GP-40 DMX512 LED Pixel Light Source is a powerful and flexible lighting controller that is ideal for use in a wide range of lighting applications, including stage productions, concerts, and architectural lighting design.
