GP-PM2020 LED Transparent Pixel Mesh screen

LED Transparent Pixel Mesh Screen Application

  • Screen of extra exterior sign and building, Lighting for city signage.
  • Coffee / wine bars, shopping malls Display, Media Facade Screen
  • Club, KTV, Amusement Park Lighting show
Contact Supplier

Specification

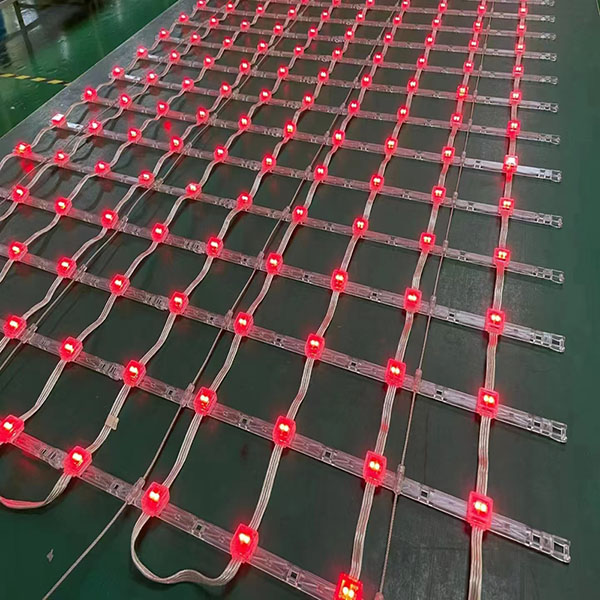

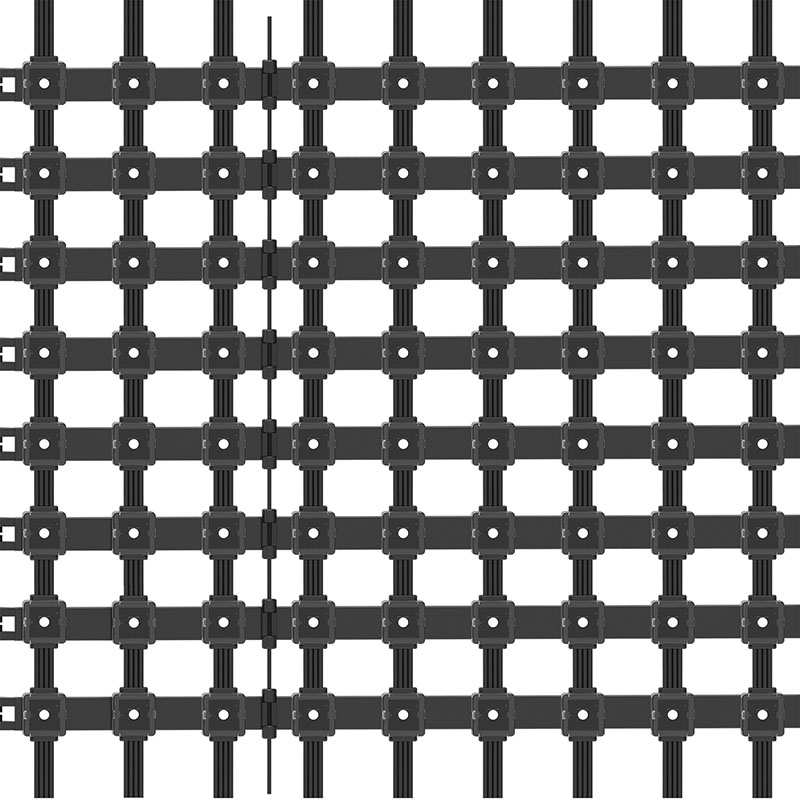

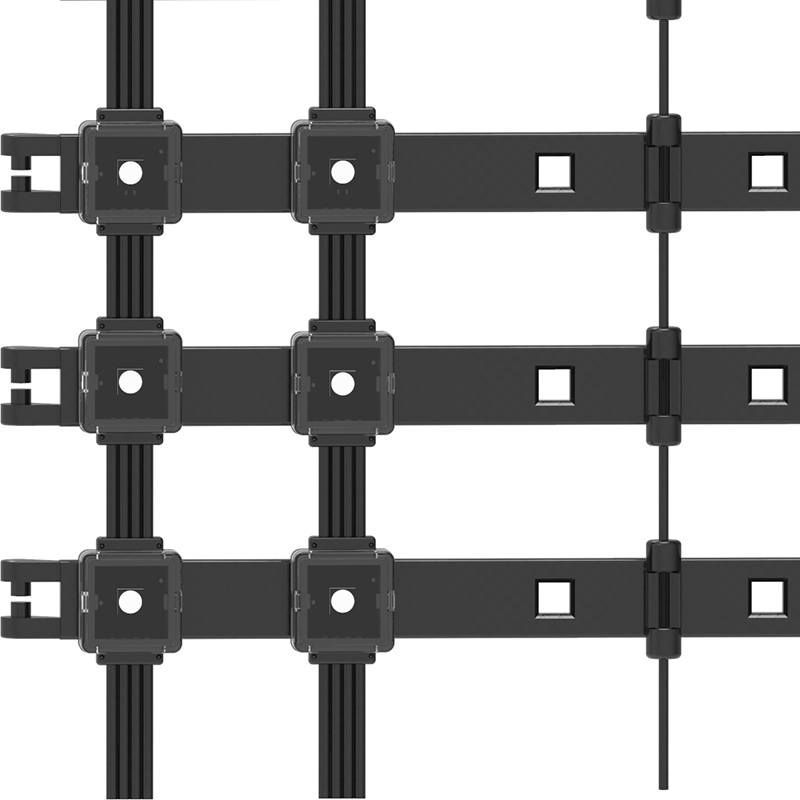

A GP-PM2020 LED Transparent Pixel Mesh screen is a type of digital signage display that consists of a grid of pixels mounted on a transparent mesh.

Item GPX  LED Transparent Pixel Mesh screen
specifications P40 P80
Application Indoor/outdoor Indoor/outdoor
Installation Steel structure support

Load wire 2.0mmWire fixing (Single module 2pcs)
Single module width 0.32meter/Piece 0.32meter/Piece
Max length of single row 9.6m 19.2m
No. of lights per square meter 625led/m2 156led/m2
Power per square meter 112.5W/m2 38.1W/m2
Per square meter weight 4.5KG/m2 1.8KG/m2
Lamp flatness < 1mm <1mm
Viewing distance >20meter >40meter
Viewing angle Within 140° Within 140°
Signal transmission distance Cat 5/ Cat 6 Network Cable Within 90 meters from the controller to the headlight
Display mode Computer/master synchronization Computer/master synchronization
Overall transparency 62% 75%

Product Feature

1. The LED light bar is composed of an environmentally friendly module composed of eco-friendly materials, and the surrounding is transparent, so it can achieve good self-healing. No auxiliary cooling equipment is required, no noise.
2. The mesh-led display area can range from as small as less than a square meter to hundreds of thousands of square meters to tens of thousands of square meters.
3. This outdoor led mesh comes with an IP67 protection level, which makes it suitable for all-weather outdoor applications.

Dimension Drawing

Installation

Function

  1. Transparency: The primary function of the transparent pixel mesh screen is to provide transparency while displaying digital content. This makes it ideal for installation in retail stores, airports, museums, and other places where unobstructed views are critical.
  2. High-quality visuals: The pixel mesh screen offers high-resolution display capabilities, making it perfect for showcasing video content, images, and other multimedia content.
  3. Customizable: The screen can be customized to fit any space and shape, making it ideal for installations in unconventional spaces.
  4. Easy installation: The pixel mesh screen is lightweight and easy to install. It can be mounted onto any structure, including curved and irregular surfaces, making it very versatile.
  5. Energy-efficient: The transparent pixel mesh screen consumes less power than traditional digital displays, making it an energy-efficient option.
  6. Weather-resistant: The pixel mesh screen is weather-resistant, making it ideal for outdoor installations. It can withstand harsh weather conditions such as rain, wind, and sun.
  7. Interactive capabilities: The transparent pixel mesh screens can be made interactive using touch technology. This allows users to engage with the content displayed on the screen, making it ideal for retail stores and other public spaces.

In summary, the Transparent Pixel Mesh screen is a highly versatile digital signage display that offers transparency, high-quality visuals, customization, easy installation, energy efficiency, weather resistance, and interactive capabilities.
