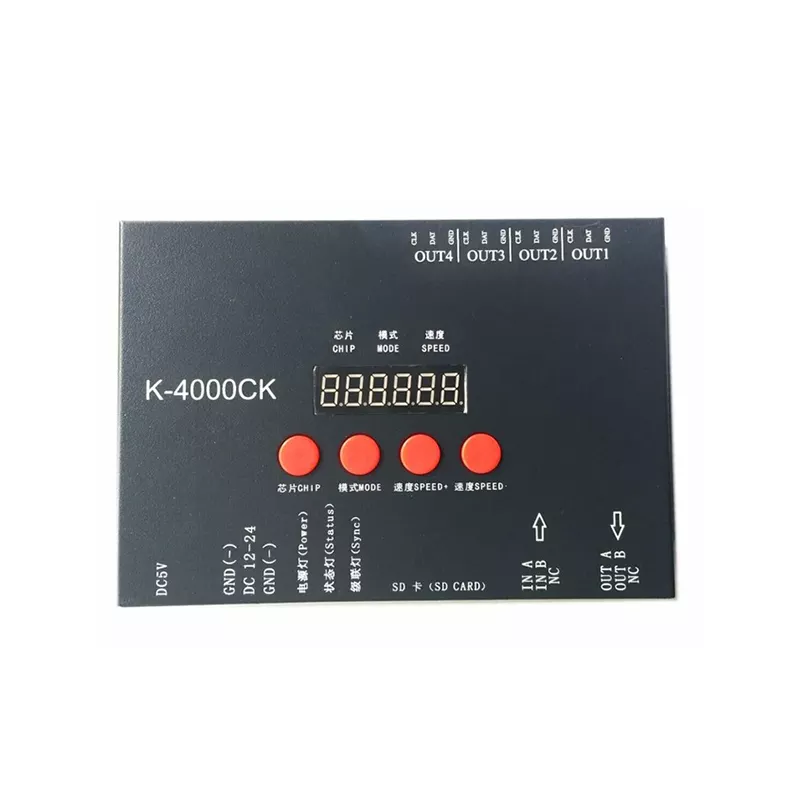

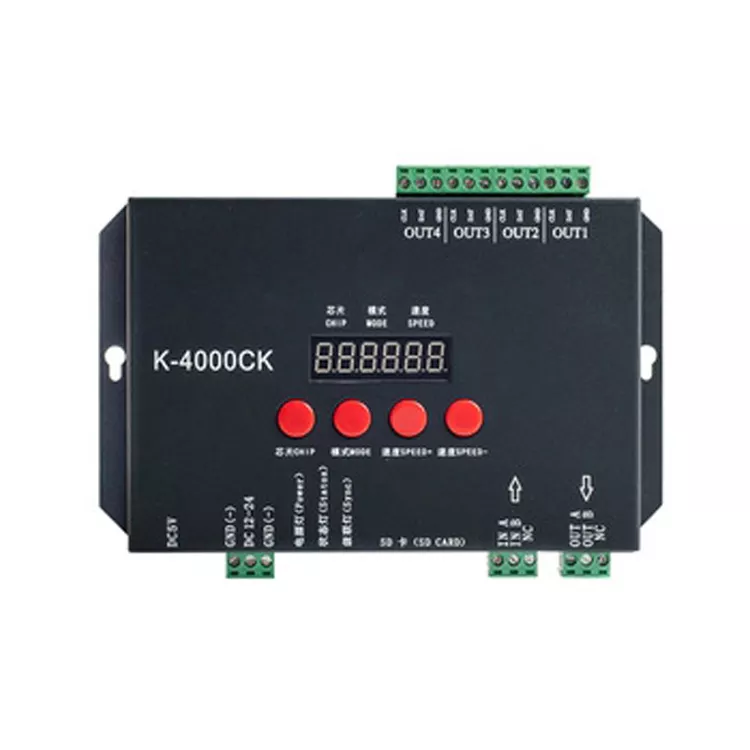

The K-4000C RGB DMX SPI LED Lighting Solutions Controller is a must-have for anyone who wants to control their LED lighting with ease and precision. This controller is designed to work with both RGB and SPI LED lighting solutions, making it a versatile choice for a wide range of applications.
One of the key features of the K-4000C RGB DMX SPI LED Lighting Solutions Controller is its advanced control capabilities. With this controller, you can adjust the brightness, speed, and color of your LED lights with ease, giving you complete control over your lighting setup.
Another important feature of the K-4000C RGB DMX SPI LED Lighting Solutions Controller is its user-friendly design. It is easy to operate and comes with a clear and concise user manual, making it a great choice for both novice and experienced users.
The K-4000C RGB DMX SPI LED Lighting Solutions Controller is also built to last. It is designed with high-quality materials and components to ensure long-lasting performance and durability. This means that you can rely on this controller to keep your LED lights shining bright for years to come.
1. K-4000C RGB LED Lighting Solution Controller Support 32-65536 level grayscale, correcting with software Gamma.
2. K-4000C RGB LED Lighting Solution Controller Support various point, line, and area light sources, various rules, and special-shaped processing.
3. Support 4 output ports, each can carry a maximum of 512/1024 lamps (DMX lamps with a maximum of 512 pixels take three channels as an example).
4. The play content can be stored on an SD card, which can store up to 32 effect files. The SD card capacity supports 128MB-32GB.
5. The controller can be used alone or in a cascade. The cascade adopts the photoelectric isolation method, featuring anti-interference and better stability. The cascade distance between two controllers can reach
150m by using a pure copper power cord of 0.5 mm2.
6. The controller with a loaded chip can be locked in the software with the loaded IC, or can be not locked and adjust the controller’s “CHIP” button to select the loaded IC, which is more flexible and convenient.
7. The IC controller for DMX lamps has its own address writing function; in addition, with our 2016 LedEdit-K V3.26 software or above version, you can set the one-key address writing function.
8. Support 4-channel (RGBW) pixels or single-channel pixels for loading lamps.
00: UCS19**,UCS29**,TM18*,SM167**,WS28**,GS82**,SK6812 (support up to 1024*4=4096 pixels, suggest to load ≤512*4=2048 pixels)
01: SM16716,16726 (support up to 1024*4=4096 pixels, suggest to load ≤512*4=2048 pixels)
02: P9813 (support up to 1024*4=4096 pixels, suggest to load ≤512*4=2048 pixels)
03: LPD6803 (support up to 1024*4=4096 pixels, suggest to load ≤512*4=2048 pixels)
04: LX1003,1203 (support up to 1024*4=4096 pixels, suggest to load ≤512*4=2048 pixels)
05: WS2801 (support up to 1024*4=4096 pixels, suggest to load ≤512*4=2048 pixels)
06: LPD1886 (support up to 1024*4=4096 pixels, suggest to load ≤512*4=2048 pixels)
07: TM1913 (support up to 1024*4=4096 pixels, suggest to load ≤512*4=2048 pixels)
08: TM1914 (support up to 1024*4=4096 pixels, suggest to load ≤512*4=2048 pixels)
09: P9883,P9823 (support up to 1024*4=4096 pixels, suggest to load ≤512*4=2048 pixels)
10: DMX (support up to 512*4=2048 pixels, suggest to load ≤320*4=1280 pixels)
11: DMX 500K (support up to 512*4=2048 pixels, suggest to load ≤320*4=1280 pixels)
Note:
1. The maximum pixel of the lamps in the brackets above takes RGB three-channel as an example.
2. Lamps of RGBW four channels should select K-8000-RGBW, and of more than four channels should select K-8000-RGBWYA.
3. Lamps of single channel should select K-8000-W. At this time, one channel represents one pixel, and the software effect is white light.
