1. K-1000C RGB LED Controller Support 32-65536 level grayscale, correcting with software Gamma.
2. K-1000C RGB LED Controller Support various point, line, and area light sources, various rules, and special-shaped processing.
3. Support a single output port, which can carry a maximum of 512 (DMX IC)/1536 (TTL/SPI) pixels (DMX lamps with a maximum of 512 pixels take three channels as an example).

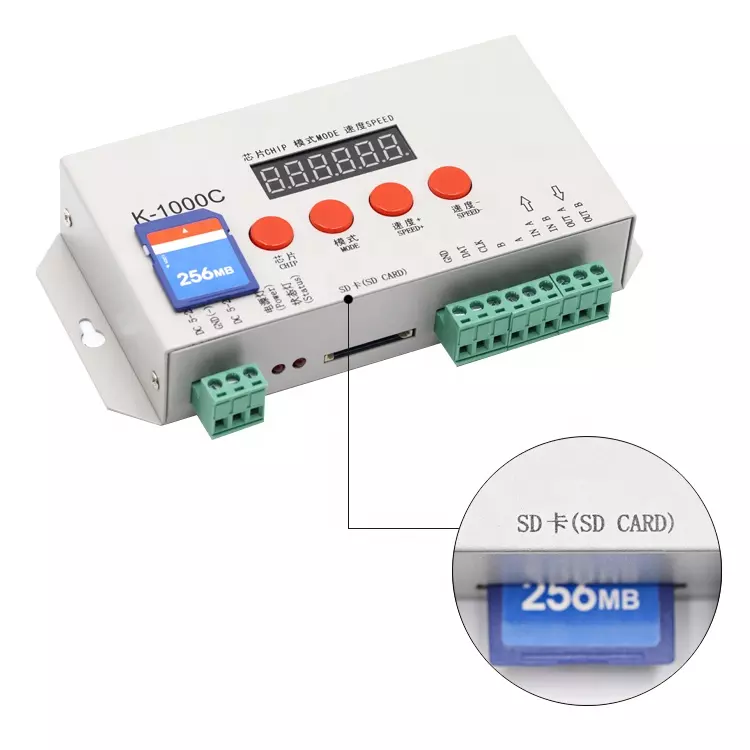

4. The play content can be stored on an SD card, which can store up to 32 effect files. The SD card capacity supports 128MB-32GB.
5. The controller can be used alone or in a cascade. The cascade adopts the photoelectric isolation method, featuring anti-interference and better stability. The cascade distance between two controllers can reach 100m by using a pure copper power cord of 0.5 mm2.
6. The controller with a loaded IC can be locked in the software with the loaded IC, or can be not locked and adjust the controller’s “IC” button to select the loaded IC, which is more flexible and convenient.
7. The IC controller for DMX lamps has its own address writing function; in addition, with our LedEdit-K software or the above version, you can set the one-key address writing function.
8. Support 3/4/multiple-channel (RGBWYA) pixels or single-channel pixels for loading lamps.
9. The built-in effect of the controller supports three channels (RGB) and four channels (RGBW).
10. The controller can test the addresses of DMX512 lamps.
11. Support enhanced TTL and 485 differential (DMX) signal output.
12. The controller has 22 test effects and a DMX512 test function.
00：UCS19**,UCS29**；TM18**,SM167**,WS28**,GS82**; SK6812 (support up to 1536 pixels)
01: SM16716,16726 (support up to 1536 pixels)
02: P9813 (support up to 1536 pixels)
03: LPD6803 (cancel) (support up to 1536 pixels)
04: LX1003,1203 (support up to 1536 pixels)
05: WS2801 (support up to 1536 pixels)
06: LPD1886 (support up to 1536 pixels)
07: TM1913 (support up to 1536 pixels)
08: TM1914 (support up to 1536 pixels)
09: P9883, P9823 (support up to 1536 pixels)
10: DMX (support up to 512 pixels at 250kbps, suggest loading ≤320 pixels)
11: DMX 500K (support up to 512 pixels at 500kbps, suggest to load ≤320 pixels)
12: DMX 250K-CZF (support up to 512 pixels, suggest loading ≤320 pixels)
13: DMX 500K-CZF (support up to 512 pixels, suggest loading ≤320 pixels)
14: UCS5603-Test (support up to 1536 pixels)
15: UCS5603A (support up to 1536 pixels)
16: UCS5603B (support up to 1536 pixels)
17: TM1814 (support up to 1536 pixels)
18: INK1003 (support up to 1536 pixels)
19: APA102 (support up to 1536 pixels)
20: UCS8904 (support up to 1536 pixels)
21: SM16714 (support up to 1536 pixels)
22: SM16813 (support up to 1536 pixels)
23: GS8512 (support up to 512 pixels, suggest loading ≤320 pixels)
24: QED3110 (support up to 1536 pixels)
25: WS2816 (support up to 1536 pixels)
26: UCS9812 (support up to 1536 pixels)
27: SM16803 (support up to 1536 pixels)
28: SM16804 (support up to 1536 pixels)
29: UCS2603-T (support up to 1536 pixels)
30: UCS2603 (support up to 1536 pixels)
Note: 1. Lamps of RGB three channels should select K-1000-RGBW.
2. Lamps of RGBW four channels should select K-1000-RGBW.
